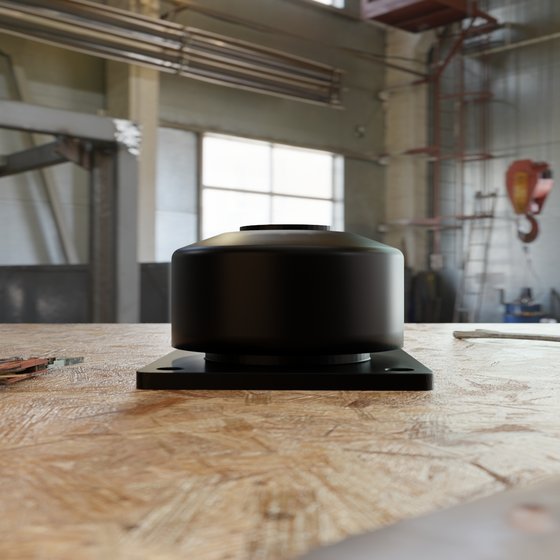

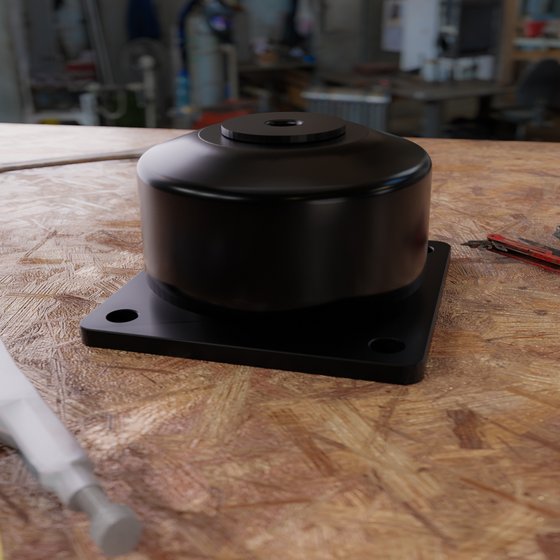

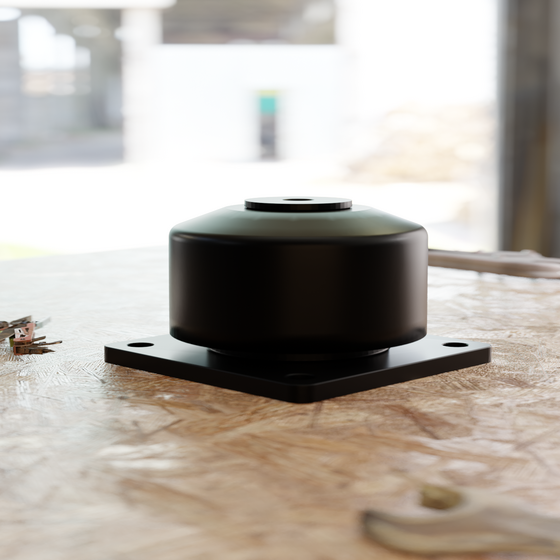

GDZ-7 - VIBRATION DAMPER
In our vibration dampers of the GDZ-( )-1 series three all-metal cushions are installed. Depending on the assembly, these cushions can be loaded with pressure or tension. Due to a third cushion it is possible to handle and damp axial forces. These elements are available in a load range from 250 – 7.000 kg. GDZ-( )-7 has their main use in the fields of plant engineering and rail-vehicle construction.
Description:
- Multi-directional vibration damper in different sizes
- Designed for axial and radial loads
- Materials:
- Damping cushion: 1.4301 or 1.4404 (others on demand)
- housing of mild steel, KTL coated
- Screw and washer of steel, zinc coated
- Resonant frequency: 15 – 20 Hz
- Load range: 250 – 7.000 kg depending on size
- High static load capacity
- High dynamic overload
- Long lifetime, compact design
Applications:
- Flexible mounting for complete exhaust systems
- Resilient suspension e.g. for heat exchangers, pumps, motors, generators, silencers
