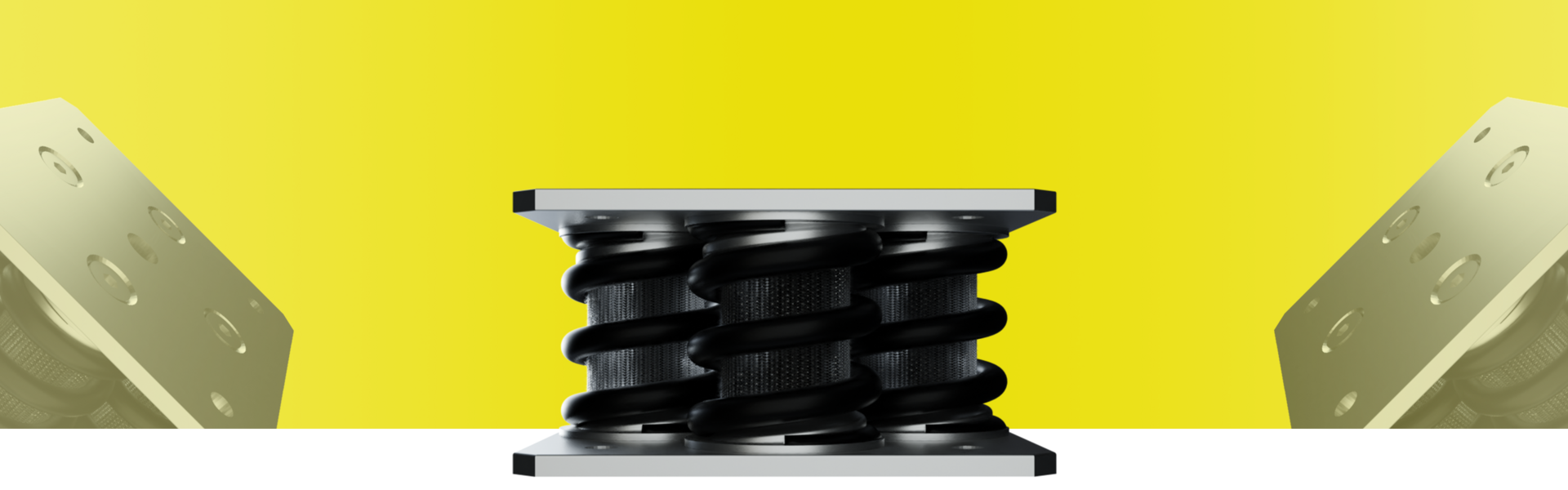

SPRING ISOLATORS

In the field of machine mountings for machines with a rotational speed of > 600 rpm RG+ offers a wide range of spring isolators with a natural frequency of 5-6 Hz. Due to the integrated all-metal-cushion there is a damping component included in the system. This enables the machine to run through resonance in a calm way. Application for spring isolators can be found in the mechanical and apparatus engineering or the power engineering. In most applications the centre of gravity is not in the centre of the machine. Therefore an exact calculation of the elements and their arrangement is necessary. Just feel free to contact us.


Description:

  • For resilient mountings of machine with a speed >600 rpm
  • Materials:
    • Springs of spring steel wire, KTL coated
    • Damping  cushion of 1.4301
    • Spring end caps of AL-alloy
    • Top and bottom plates of steel, zinc coated
  • Resonant frequency: 5-6 Hz
  • Load range: 7 – 1.600 kg depending on size and type

Accessoires:

  • Fixing plate for single-elements

Applications:

  • Resilient suspension  e.g. for crushers, mills, pumps, cooling units, test-stands, fans, block heat and power plant modules and components

FR-E 5-6Hz A

Spring Isolator 5-6Hz technical drawing

FR-E 5-6Hz

Spring Isolator 5-6Hz technical drawing

FR-E 5-6Hz A

Spring Isolator 5-6Hz technical drawing

FR-E 5-6Hz

Spring Isolator 5-6Hz technical drawing

FR-E2 5-6Hz

Spring Isolator 5-6Hz technical drawing

FR-E4 5-6Hz

Spring Isolator 5-6Hz technical drawing
