GAB-2 - VIBRATION DAMPER
In our vibration dampers of the GAB-( )-2 series two all-metal-cushions are installed. Depending on the assembly, these cushions can be loaded with pressure or tension. The elements are available in a load range from 150 – 500 kg. They can be welded to the plant periphery by using the integrated cushion seat. GAB-( )-2 elements have their main use in the fields of plant- and maritime engineering especially to mount complete exhaust piping systems. In this case GAB-( )-2 needs to be your first choice due to their resistance against heat and their long lifetime.

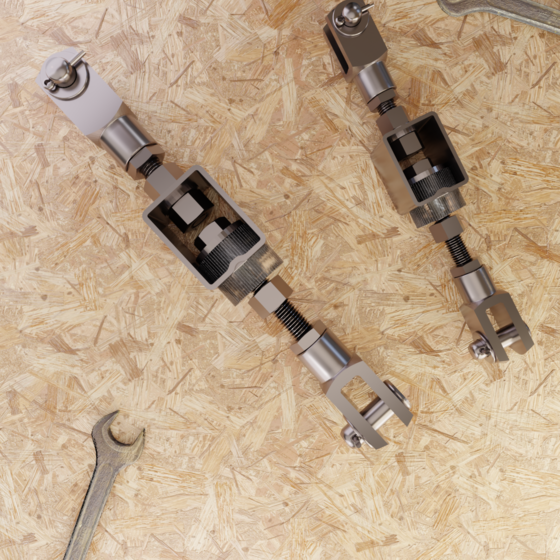

![GAB 500 Series 2 Top](/fileadmin/_processed_/7/c/csm_GAB-500-C10001_677979223c.png)

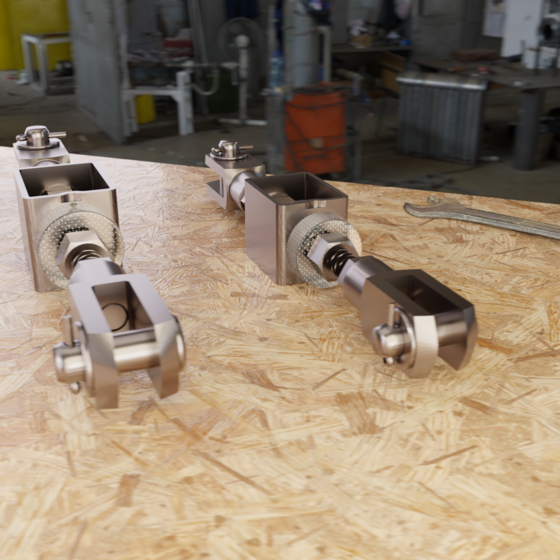

![GAB 500 Series 2 Front](/fileadmin/_processed_/4/d/csm_GAB-500-C20001_bbf7f90676.png)

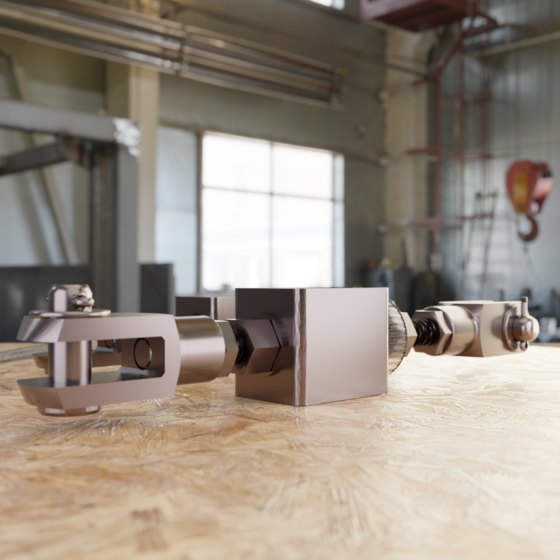

![GAB 500 Series 2 Right](/fileadmin/_processed_/c/4/csm_GAB-500-C30001_cc3ac89577.png)

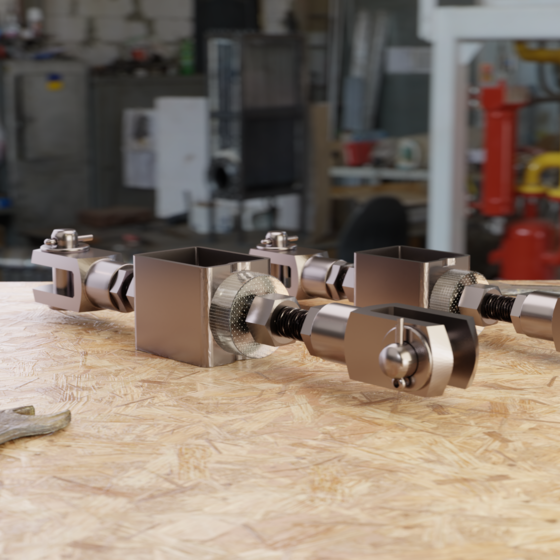

![GAB 500 Series 2 Left](/fileadmin/_processed_/a/b/csm_GAB-500-C40001_9fc8cd7349.png)
![GAB 500 Series 2 Top Thumbnail](/fileadmin/_processed_/7/c/csm_GAB-500-C10001_92a5ef615a.png)
![GAB 500 Series 2 Front Thumbnail](/fileadmin/_processed_/4/d/csm_GAB-500-C20001_e2dbd430cd.png)
![GAB 500 Series 2 Right Thumbnail](/fileadmin/_processed_/c/4/csm_GAB-500-C30001_5d980089f6.png)
![GAB 500 Series 2 Left Thumbnail](/fileadmin/_processed_/a/b/csm_GAB-500-C40001_7070ab2d1c.png)
Description:
- Vibration damper for pipe fixation in different sizes for welding connections
- Designed for axial load only
- Materials:
- Damping cushion: 1.4301 or 1.4404 (others on demand)
- Fork head, pin, split pin of steel, zinc coated
- Screw, threaded rod, nuts, square profile and washers of steel, zinc coated
- Resonant frequency: 15 – 20 Hz
- Load range: 150 – 500 kg depending on size
- High static load capacity
- High dynamic overload
- Long lifetime, compact design
Applications:
- Flexible mounting for complete exhaust systems
