GKK - damping cushion Header

Product

GKK - damping cushion

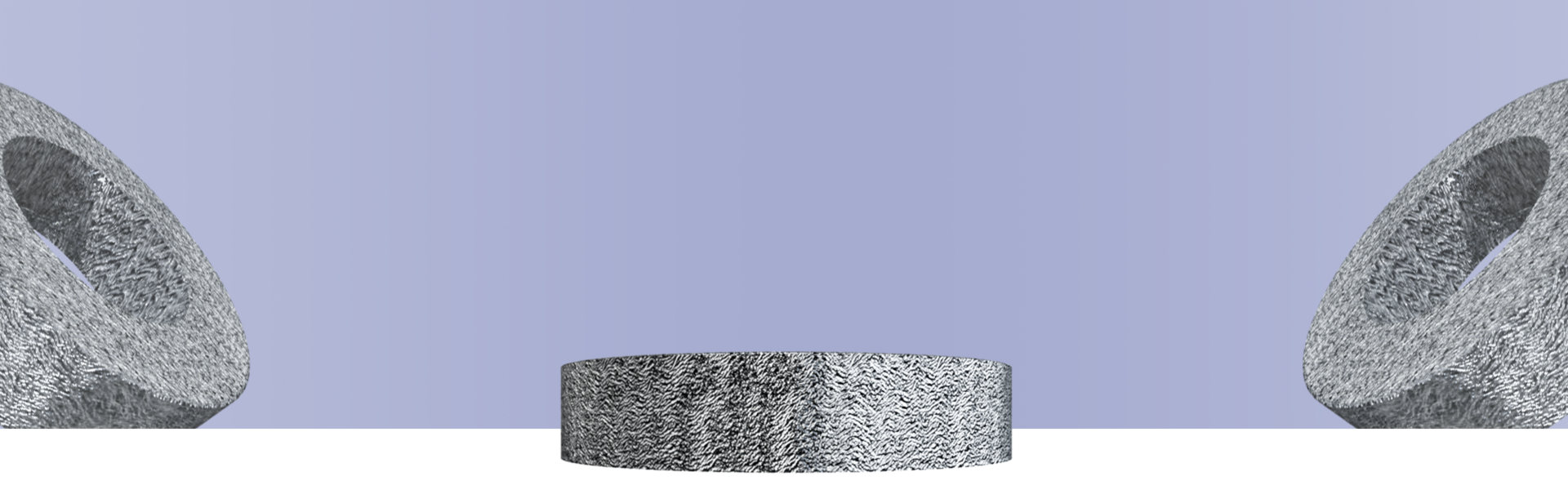

The damping cushion made of stainless steel, is knitted in a special process. Depending on the form, density and size of the cushions the load range is between 5 and 10.000 kg. On the one hand as an anti-vibration damper itself, on the other hand obstructed in other forms of vibration dampers, the cushions have their use e.g. in the mechanical engineering, rail-vehicle construction and plant engineering. By the use of different tools we are able to press many different cushion forms. The standard materials are 1.4301 and 1.4404. Other materials are on demand.


Description:

  • Cushion in conical form in different densities and sizes
  • materials: 1.4301 and 1.4404 (other are on demand)
  • Resonant frequency: 15 – 35 Hz depending on density
  • Load range: 5 – 10.000 kg depending on size
  • High static load capacity
  • High dynamic overload
  • Very long lifetime

Applications:

  • Resilient suspension for rotating machines
  • Flexible mounting of exhaust systems
  • Constructional element for vibration dampers

GKK

GKK technical drawing
