GMF - VIBRATION DAMPER Header

Product

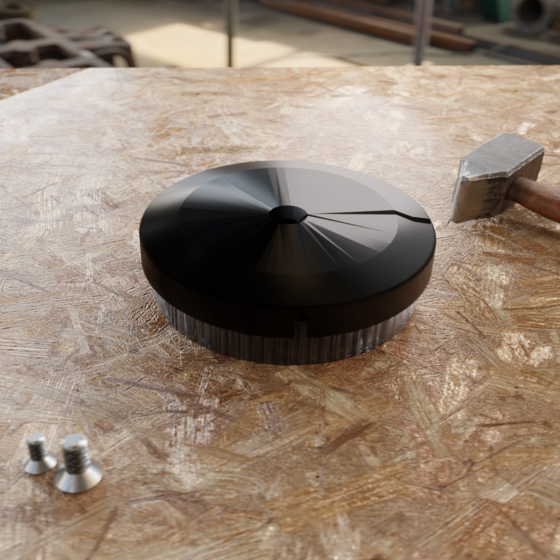

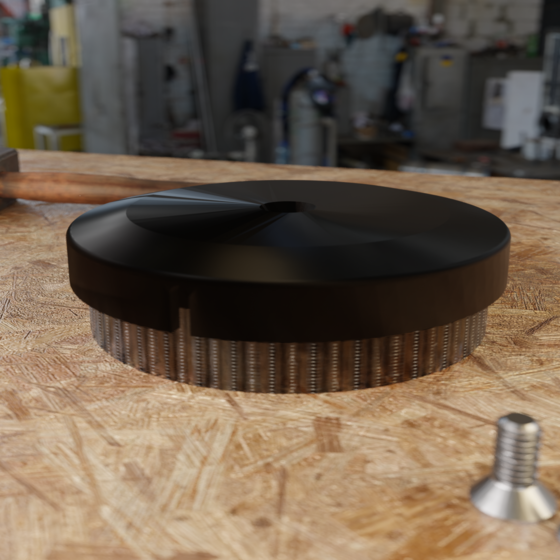

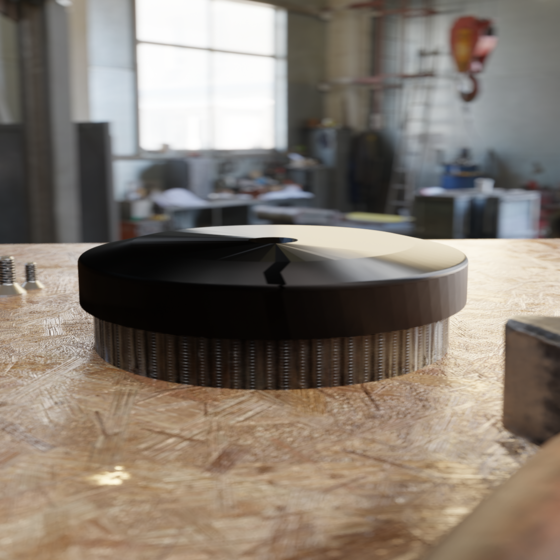

GMF - VIBRATION DAMPER

Vibration damper of the GMF-( ) series are the perfect solution for your whole machine parc, cause they need no maintenance and need not to be exchanged after 1 or 2 years in use. They are not fixed with the ground so the flexibility of all your machines retains. Due to their compact design they will not need much space. The load range of the elements depends on their size and lies between 250 and 8.000 kg.


Description:

  • Machine feet in different sizes
  • Materials:
    • Damping  cushion: 1.4301 or 1.4404 (others on demand)
    • cushion seat of steel, KTL coated
  • Resonant frequency: 15 – 40 Hz depending on type
  • Load range: 250 – 8.000 kg depending on size
  • High static load capacity
  • High dynamic overload
  • Long lifetime, compact design

Accessoires:

  • Slip resistant sole
  • High-adjustment screws
  • Base plates

Applications:

  • Resilient suspension for machine tools e.g. turning machines, presses, grinding machines

GMF

GMF technical drawing
